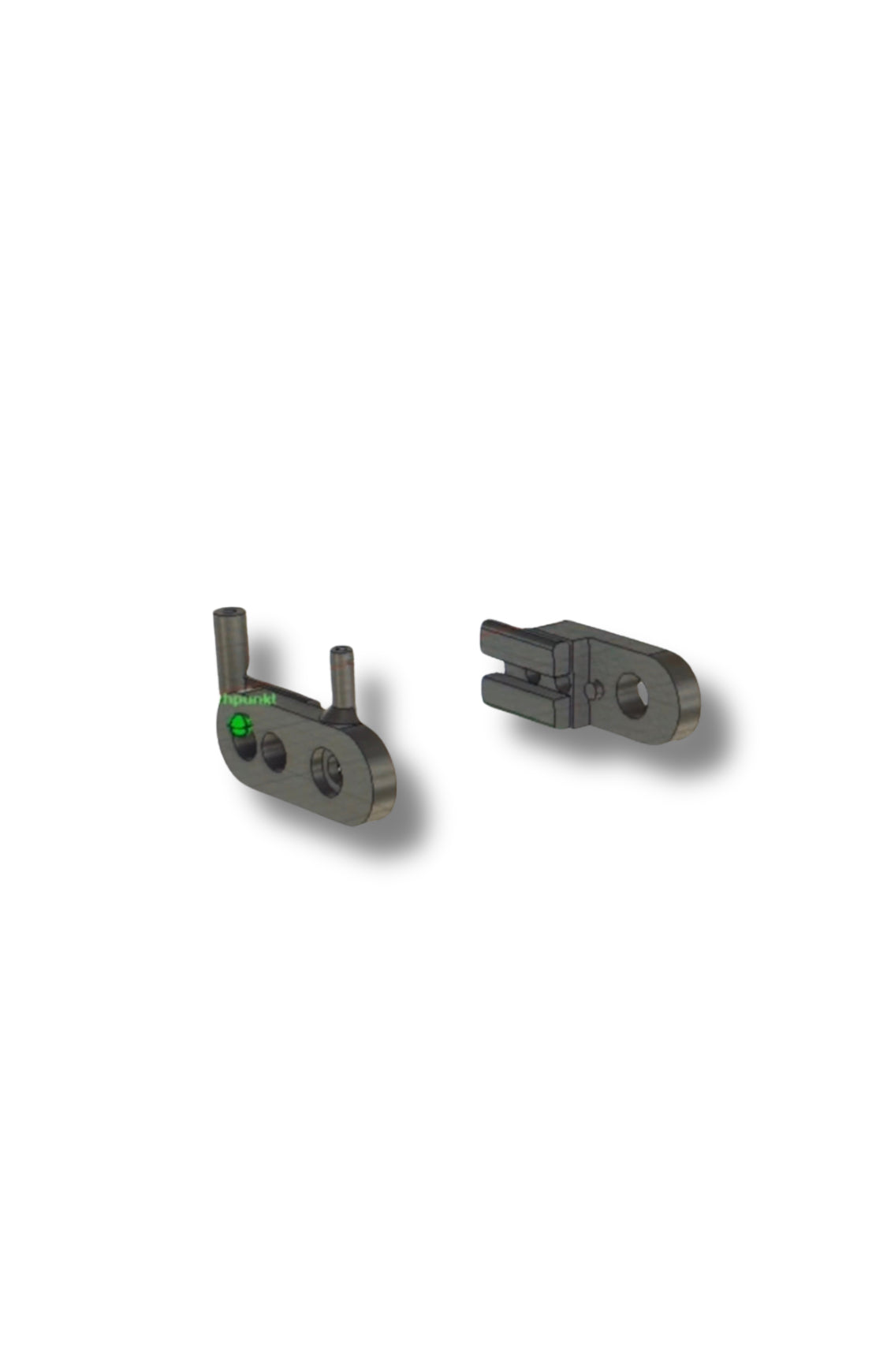

Scope of delivery:
1x CNC UDH drive side / 22g
1x CNC 140mm PM non drive side / 30g
4x M10x16mm stainless bolts / Allen key size: 8mm / 25Nm / 19.8g / 79.4g
4x M10 stainless nuts / Socket size: 16mm / 25Nm / 6.2g / 24.7g
UDH and thru axle are not included! The correct thru axle is 158-169mm long, 12mm diamter, M12x1.0mm thread, flat contact surface. There are many options from affordable RockShox/Maxte to fancy coloured Ti-Carbon.
Compatibility:

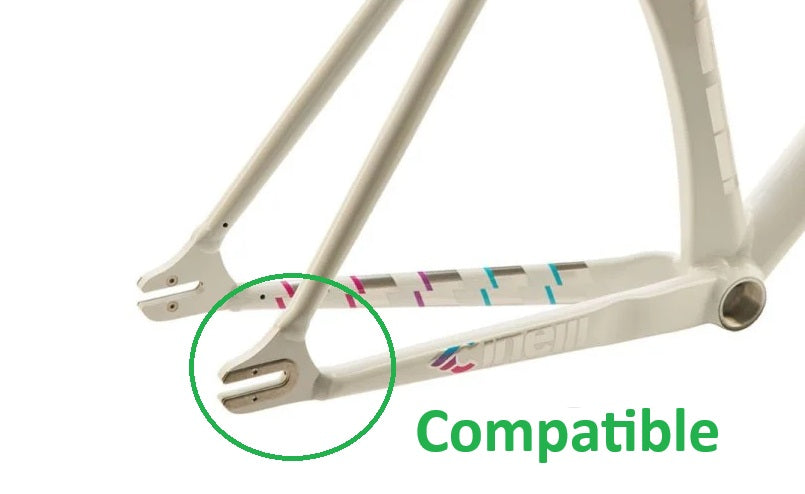

Compatible with flat fixie and track dropouts.

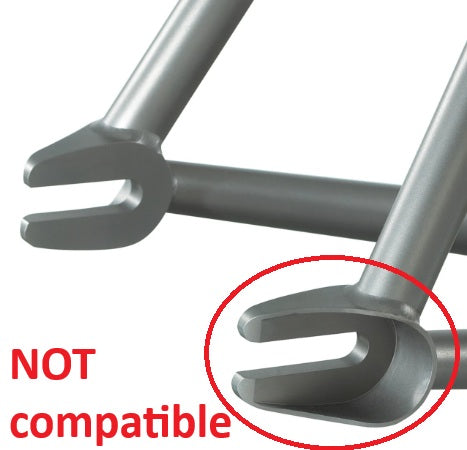

Not compatible with No22 little wing dropouts!
Compatible with 140mm disc with this FM adapter, no PM adapter needed.
Compatible with 160mm disc with this FM adapter or this PM adapter.
Made in Zürich, Switzerland
