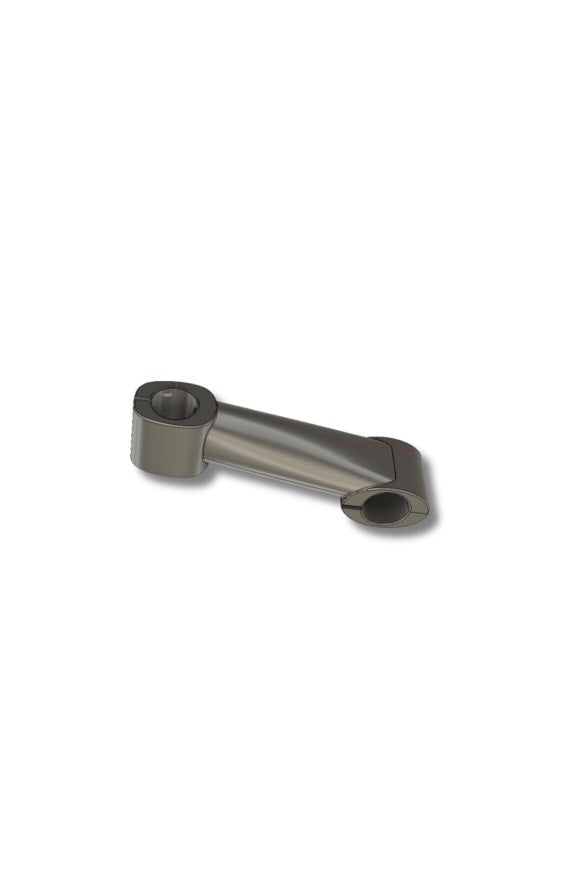

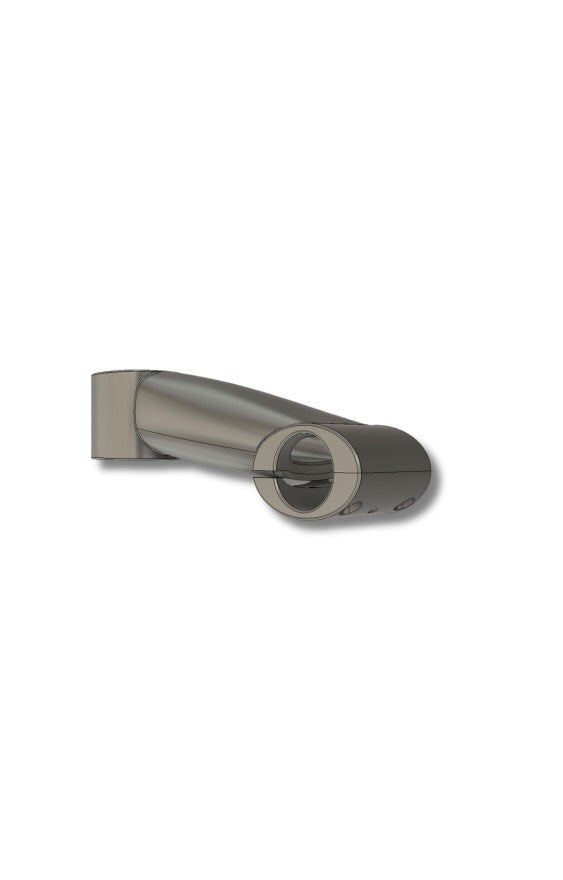

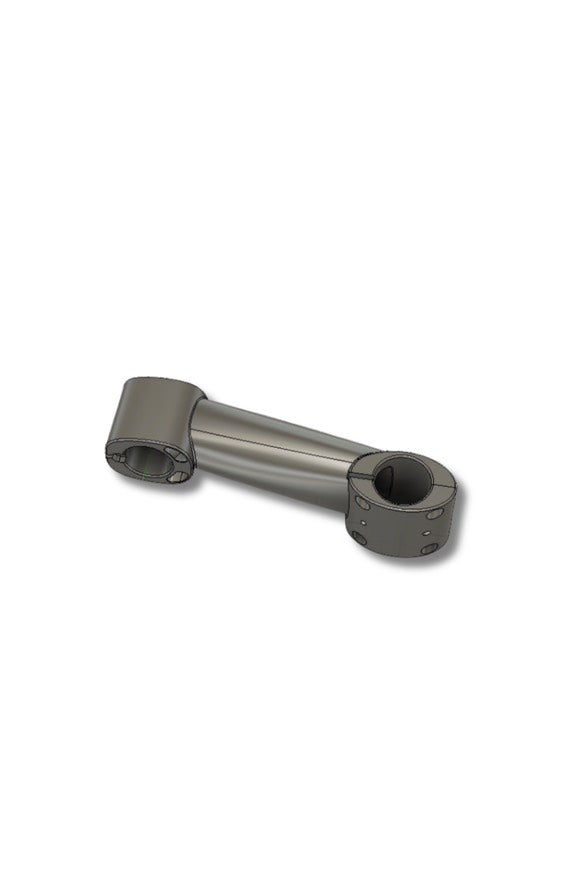

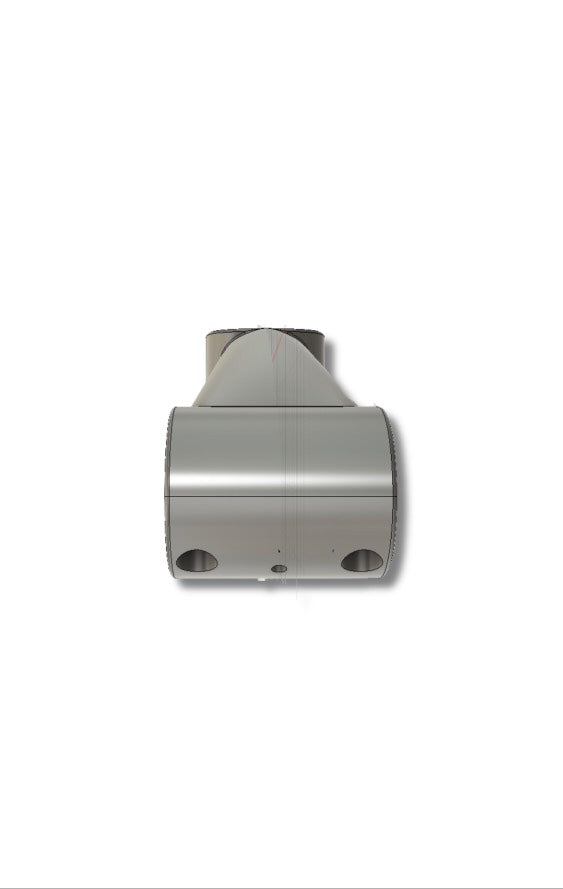

Stiff and aero 3d printed ICR stem
- Handlebar clamp Ø: 31.8 mm
- Length: 100-160mm
- Angle: - 10°
- Steerer clamp height: 47 mm
- Minimum steer tube insert 42mm
- No gap faceplate
- M4 threads for computer mount
- Tested by EFBE
Scope of delivery:1x 3D printed stem black anodized / 100g
1x CNC no gap face plate black anodized / 40g
2x
M5x10mm bolts / Allen key size: 4mm / 4Nm / 1.65g/ 3.3g
4x
M5x16mm bolts / Allen key size: 4mm / 4Nm / 2.08g/10g
1x 3D printed computer mount adapter / 2Nm / 4g/8.32g
1x
M4x30mm bolt / Allen key size: 3mm / 2Nm / 1.5g
Rough finish
Typical 3D print surface with rough charm.
Extra smooth finish:
Pearl blasted by hand and a lot of labour to get a smoother surface.
Compatibility:
All framesets with 1 1/8" (28.6mm) fork steerer diameter. Fits perfectly on
Enve in-route headsets. For example
Aerosets.We only tested the IHS mounts from
k-edge and
Lupine with the included M4 bolts bolts but any other IHS mount should also be compatible. 4-8mm back, 5-11front
Combine with our
Minimalist Topcap for a super flush and aero setup
Combine with our 5, 10, or 15mm custom spacer for non ICR 46mm headsets
